Modular Fully-Anechoic Chamber (MFAC)
No.1 Share in JAPAN
>> Click here for the Chinese version (点击这里查看中文版)
The Modular Fully Anechoic Chamber is used for measuring sound power for home appliances, small drive components, and for electrical acoustics measurements.
Sonora designs from scratch based on ISO standards or measurement methods determined by each user.
* Sound absorption layer on 6 faces (Floor, walls, ceiling)
All components of Sonora’s anechoic chamber are manufactured in Japan.
Products manufactured by the latest processing machines and craftsmen ensure high precision
The anechoic chamber consists of steel sound insulation panels and frames as its basic structure.
Its compact and modular design allows for easy on-site installation, dismantlement, and relocation.

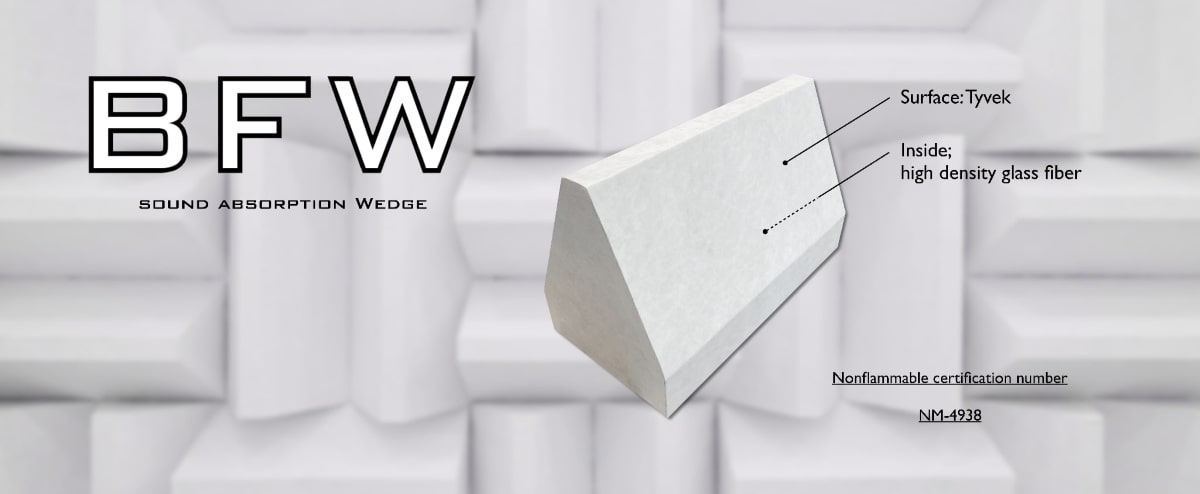

The sound insulation panels and absorption wedges are original Sonora designs.
Compared to other companies, they offer high performance while being thin, space-saving and lightweight.
It is lower priced compared to other companies.
Various facilities such as wind tunnel test equipment, constant temperature and humidity facilities, and handling equipment can be additionally installed.
We can also propose sets with acoustic measuring instruments.
We handle measuring instruments from companies such as Bruel & Kjar, GRAS, Siemens and others.
MODELS / PRICES
The specifications are just for reference, we customize from scratch.
There are 3 types of specifications. But basically, we’ll design from scratch, according to the size, measurement method and workability of the user’s acoustic measurement object. We can meet all kinds of requests, such as installing a crane, flattening the bottom of the door so that there is no step when carrying in, controlling temperature and humidity in an anechoic room, and conducting a wind tunnel test.
Modular Fully Anechoic Chamber
| Type | Wedge | Effective (mm) | External Dimensions (mm) | Price |
|---|---|---|---|---|
| X-1 | HV02W | W2000 × L2400 × H2450 | W2700 × L3100 × H3260 | Please contact us |
| X-2 | HV02W | W2400 × L3000 × H2450 | W3100 × L3700 × H3260 | |
| X-3 | HV02W | W3000 × L3600 × H2450 | W3700 × L4300 × H3260 | |
| S-1 | T-250 | W2000 × L2400 × H2450 | W2700 × L3100 × H3200 | |
| S-2 | T-250 | W2400 × L3000 × H2450 | W3100 × L3700 × H3200 | |
| S-3 | T-250 | W3000 × L3600 × H2450 | W3700 × L4300 × H3200 | |
| H-1 | T-500 | W2000 × L2400 × H2450 | W3200 × L3600 × H3700 | |
| H-2 | T-500 | W2400 × L3000 × H2450 | W3600 × L4200 × H3700 | |
| H-3 | T-500 | W3000 × L3600 × H2450 | W4200 × L4800 × H3700 | |
| Free Type | Other designs: it’s inexpensive beyond the specification. Feel free to contact us | |||
SPECIFICATION
Top-class sound insulation performance is guaranteed.
The sound insulation performance of the anechoic room is unrivaled compared with other companies. The background noise in an anechoic room can even reach to 0 dB varying depending on the installation environment. An advanced acoustic measurement space can be realized by introducing our anechoic chamber.
Sound Insulation (Transmission Loss) / dB
| Sound Insulation (Transmission Loss) / dB | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hz | 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K | |
| Guarantee Value of Sound Insulation | X | （25） | 30 | 36 | 40 | 49 | 53 | 55 | 54 |
| S | （28） | 35 | 41 | 45 | 51 | 55 | 57 | 56 | |
| H | （32） | 40 | 46 | 50 | 56 | 60 | 62 | 61 | |
| Actual Value of Sound Insulation | X | 36.8 | 52.4 | 55.3 | 61.8 | 66.2 | 70.0 | 79.3 | 79.9 |
| S | 42.4 | 43.0 | 53.9 | 67.1 | 67.7 | 71.9 | 75.4 | 84.9 | |
| H | 34.8 | 51.0 | 63.5 | 69.8 | 73.8 | 78.3 | 81.6 | 88.1 | |
PARTS LIST
Standard
- Single swing sound insulation door: Inner wall sound absorption layer
- Walkway: Grating (plated finish) Load over 200kg
- Vibration isolation layer
- Utility pipe diameter 65 + inside and outside sound insulation cover Microphone hanging hook
- Air supply diffraction silencer
- Exhaust diffraction silencer
- Anechoic EA filter
- Completed documents (drawings, specifications, etc.)
- Bulb type LED lighting
- Outlet 100V-3P-2 ports
- Indicator light 10W “In use” text
- Sirocco fan + flexible silencer
- Switch box distribution board
- Secondary side wiring Construction
Option
- Air conditioning equipment Monitor
- Signal light
- Sound Absorption BNC Shelf Intercom
- Gas Alarm
- Fire Alarm etc.
OTHERS
- All anechoic room structural materials are using non-combustible materials
- With completed books
- We will change the dimensions of the anechoic chamber and adjust the sound absorption performance as well according to the installation layout.
- Can be removed, modified.
- The lead time depends on the operation of the factory, so please contact us.
Data Download
You can download the PDF file from here
SONORA’S ADVANTAGES
Price lower than Competitors
We pride ourselves on offering top-notch products right in our own factory, cutting out the middleman and ensuring that you get the best value for your money. When you compare quotes, you’ll find that our prices are consistently lower than our competitors. We guarantee the same specifications and warranty terms as the competitors. So you get the same great product.
First penguin in the industry to introduce “Acoustic Performance Guarantee System”
Since our establishment, Sonora has remained steadfast in our commitment to ensuring the superior acoustic performance of all our products. Through meticulous verification measurement tests, we guarantee that our stated values are substantiated, thus eliminating any concerns regarding insufficient sound reduction, even in spaces equipped with Anechoic Chambers. Sonora stands firm in our dedication to fulfilling our responsibility as a leading sound insulation specialist company, delivering unparalleled quality and reliability to our esteemed clients.
Second-to-None Product Performance
Sonora’s unwavering commitment to research and development drives continuous enhancements to our proprietary sound control technology, which constitutes the foundation of nearly all our products. Since our inception, we have consistently expanded our expertise through the resolution of diverse noise challenges, further solidifying our proven track record and distinctive knowledge base.
Choose Sonora for unparalleled quality and value in acoustic measurement solutions.
