[For a Major Electronics Manufacturer] Small Soundproof Box (High-Performance Type)
Others
A high-performance soundproof box was delivered for the acoustic evaluation of small devices.
By combining a space-saving design with practical functionality, an efficient measurement environment was established to support product evaluation and quality control applications.
Delivered Equipment Overview
| Equipment name | Small Soundproof Box (High-Performance Type) |
| Type | TYPE-FREE |
| Application | Soundproof equipment for noise measurement and acoustic evaluation of small devices and components |
| Installation | Indoor installation, standalone self-supporting structure |
Based on the drawing title and general arrangement.
External Dimensions (Typical)
| Width | approx. 750 mm |
| Depth | approx. 750 mm |
| Height | approx. 1,420 mm (including base frame) |
→ Compact design suitable for installation in space-limited environments
Structure & Finishing
| Exterior | Baked enamel coating |
| Interior | Perforated metal finish with sound-absorbing treatment |
| Structure | Soundproof box construction using sound insulation panels |
Access & Operability

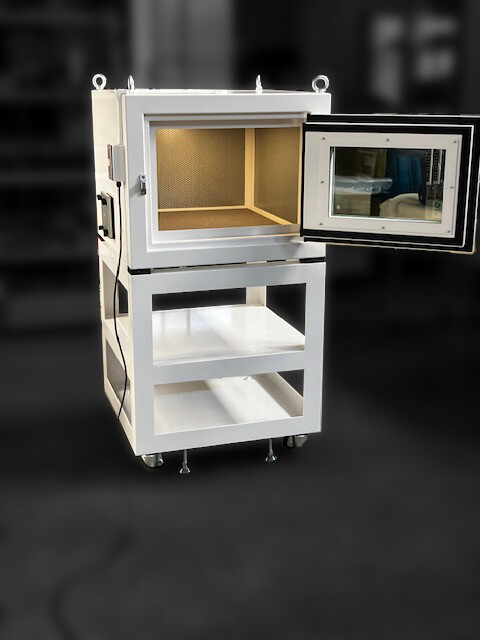

Soundproof door: Front-opening type
- Equipped with a fixed viewing window for internal visibility
- Airtight handle design
Cable routing
- Cable penetration port with soundproof cover provided
Internal & Auxiliary Equipment

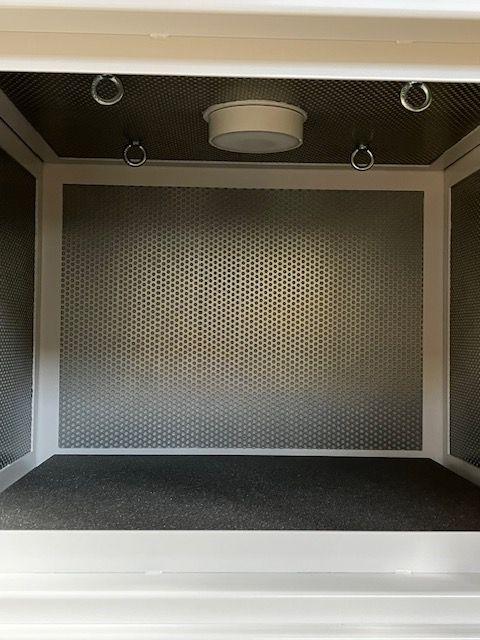

- Hooks for measurement microphone installation (ceiling-mounted)
- Internal work table with sound-absorbing mat
- Internal lighting and lighting switch
- Vibration isolation measures (anti-vibration rubber)
- Base frame with casters for easy relocation and installation adjustment
Installation & Usability
- Integrated internal equipment required for measurement despite compact size
- Caster structure designed with portability in mind
- Practical internal layout optimized for measurement and evaluation tasks
