[For a Major Manufacturing Company] Modular Soundproof Room, H Type (with Floor)

Others

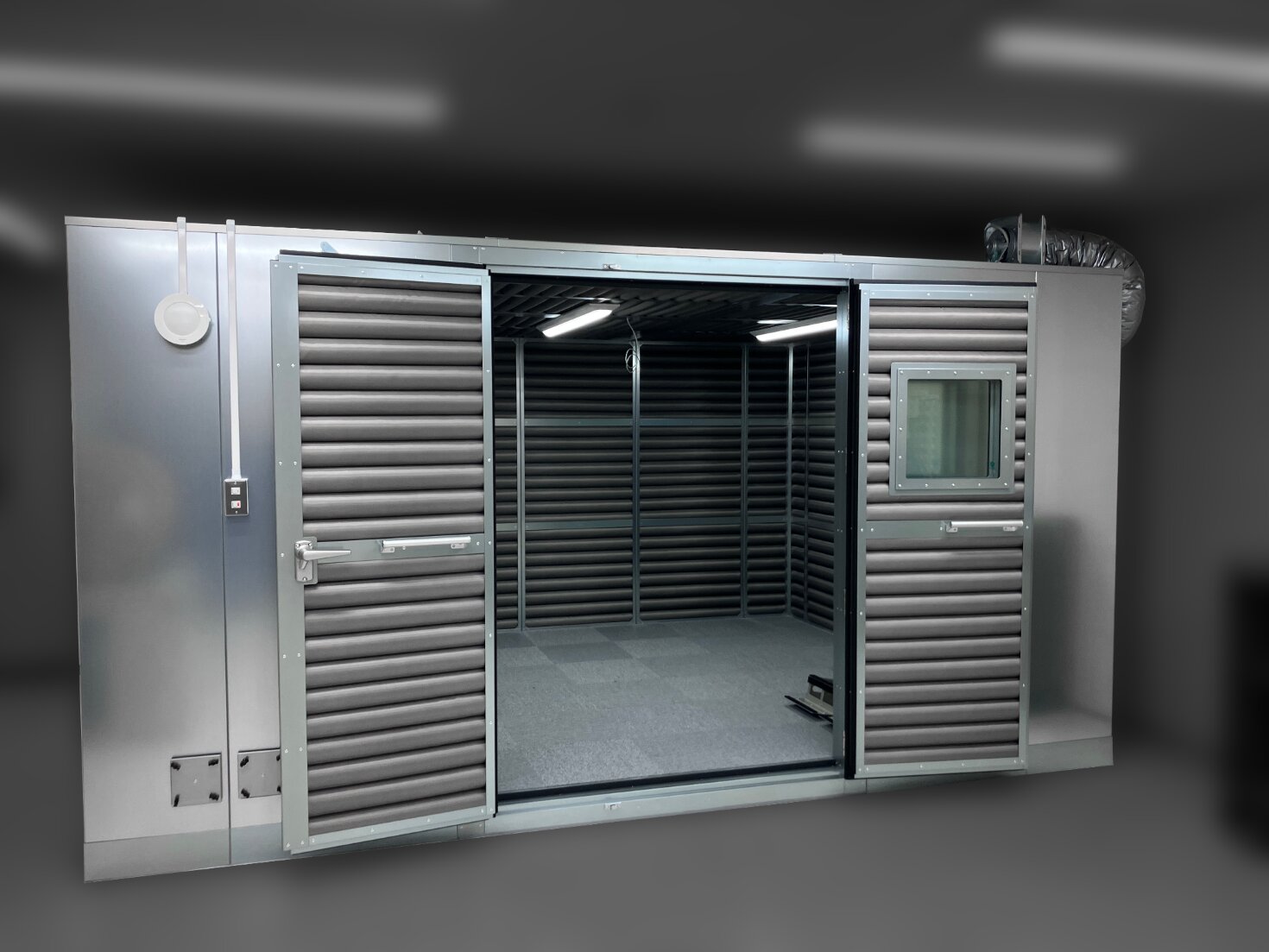

We delivered a Modular Soundproof Room, H Type (with Floor) for a major manufacturing company.
This system features a modular structure using steel sound-insulating panels, making it suitable for on-site delivery and installation while ensuring reliable sound insulation performance.

The interior is configured as an independent enclosed space with an integrated floor. The interior finish uses broadband acoustic control pipes, while the floor is finished with 5 mm carpet. In addition, the room is equipped with a large opening provided by double doors, an observation window, lighting, a ventilation fan, intake and exhaust silencers, and utility piping, resulting in a highly practical specification designed for actual operation.

A ramp is also provided at the entrance to improve accessibility for equipment transport and operator entry and exit. This is a soundproof room case study that emphasizes not only sound insulation performance, but also usability and ease of installation.

Features

• Modular construction allows flexible delivery and on-site installation
• Integrated floor structure creates an independent soundproof space
• Double doors provide a wide opening to facilitate the movement of equipment in and out of the room.
• Practical specification equipped with lighting, ventilation, and utility piping
• Ramp-equipped design improves equipment transport and operator access

Main Specifications

Door

• Double door
• Outward opening, right active leaf

Fixed Window

Ceiling

Walls

Floor

Equipment

Guaranteed Sound Insulation Values

Guaranteed sound insulation values based on JIS A 1417:2000
