Anechoic Room S-Type to a university

MFAC

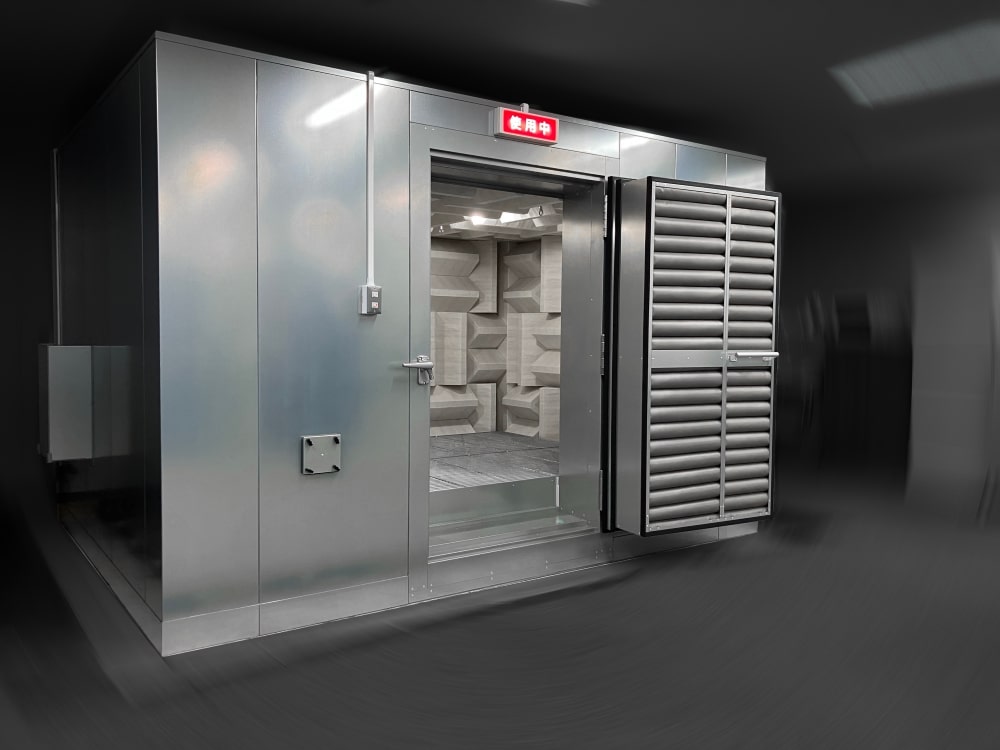

We delivered an Anechoic Room S-Type to a university.
This compact, high-performance modular anechoic room is designed for acoustic measurements, recording, and educational use.

External Dimensions

External SizeW 3,600 × D 3,600 × H approx. 2,700 mm
DoorSingle swing door W 900 × H 1,800 mm

Structure

Exterior

  • Steel sound-insulation panels

Interior

  • AS wedge absorbers (T-250)
  • Tarpaulin screen for absorber protection

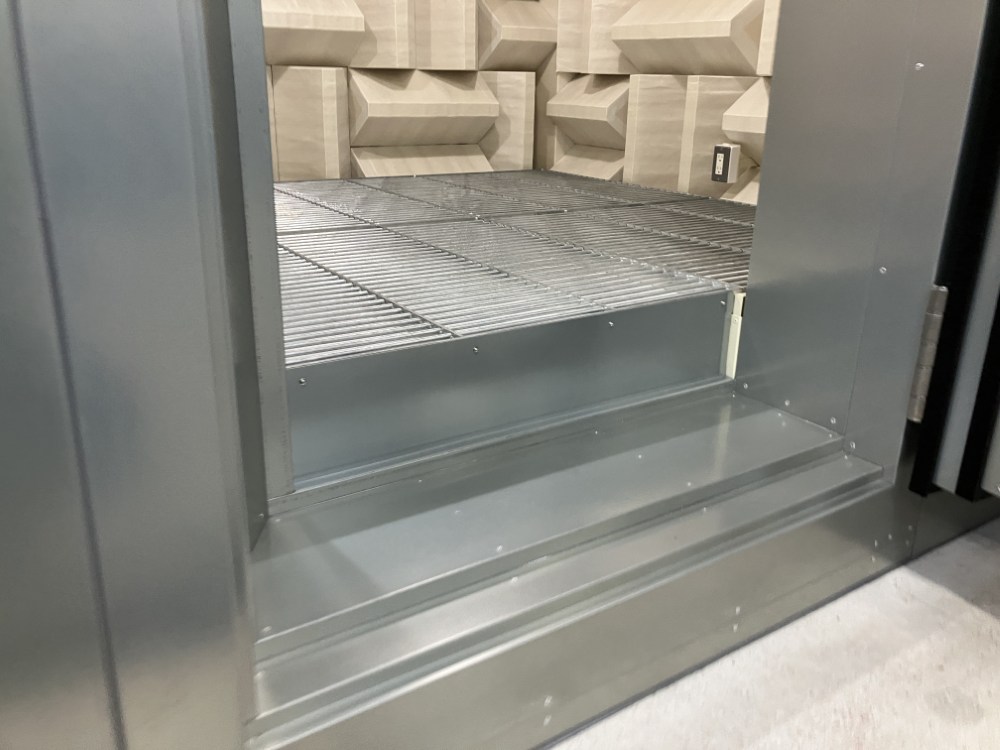

Floor

  • Galvanized grating
  • AS wedge absorbers (T-250)

Main Specifications

  • Utility pipes (2-□70 with sound-insulation covers)
  • Exhaust silencer ×1
  • Intake silencer ×1
  • Exhaust fan ×1
  • LED lighting ×2
  • Microphone hanging hooks ×5
  • “In Use” indicator lamp ×1
  • AC outlet: Single-phase 100V, 2-socket ×1
  • Emergency speaker
  • Fire alarm detector
  • Vibration-isolating rubber (t20)

Applications & Features

  • Suitable for acoustic measurements, recording, and educational activities
  • Self-supporting modular construction
  • Wide-band absorption performance with T-250 wedge absorbers
  • Floating structure compatible with the university’s OA floor system
